Microwave Diode High Voltage Diode CL01-12, 2 Pack

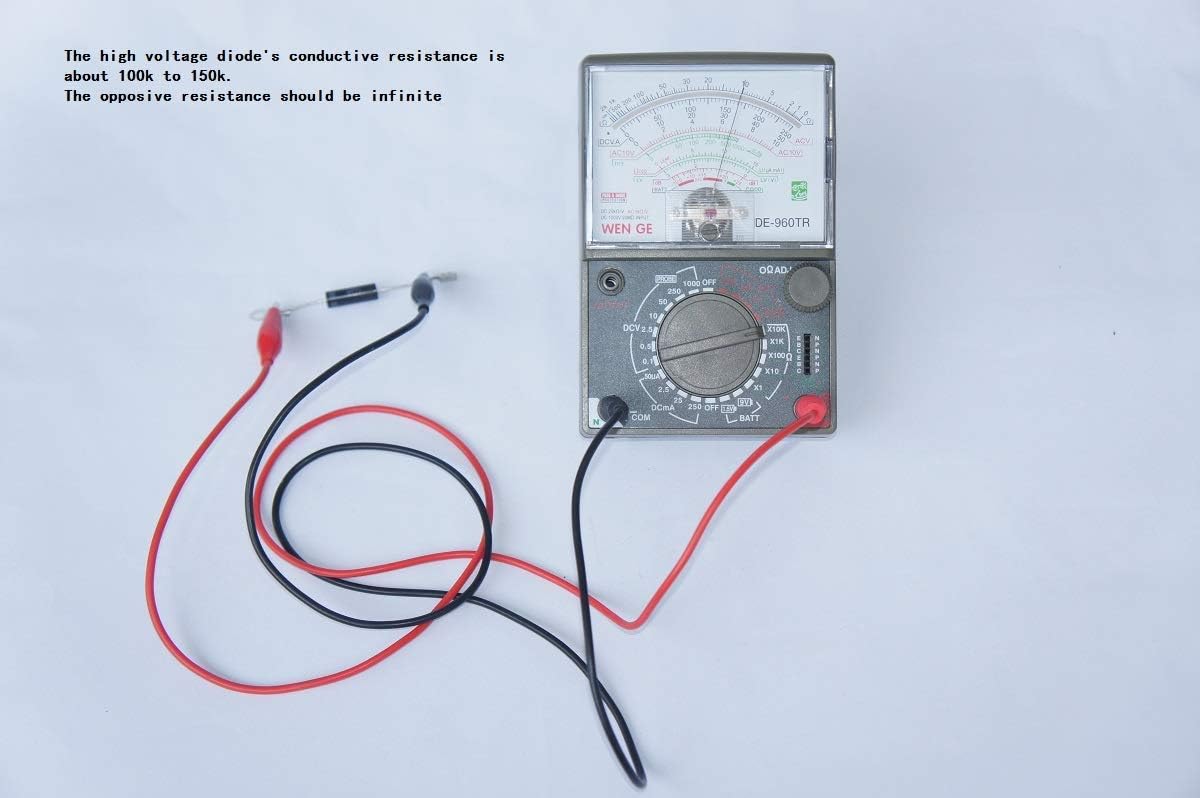

Production Name: Microwave Diode Modal Name: CL01-12 Pack Items: 2 Pack Final Remark: 1. Safe is first, power off and conform high voltage capacitor released high voltage first 2. Check your old and original diode's terminal size first, some new microwave's female spade terminal is 3/16in standard, yet this is 1/4 in standard. 3.Microwave diode's valve voltage is more than 3 VDC, so many digital multifunction meter can not test it bad or not, because only 3 VDC battery inside 4.Advise to use traditional anolog meter to test it because it has 9 VDC battery inside 5.The phenomenon of microwave diode broken is that no microwave wave and no heat 6.The microwave diode function is to change 2100(or 2200) V AC to 4200(or 4400) V AC, then magnetron produce microwave

• Production Name: Microwave Diode, Modal Name: CL01-12,Withstand Voltage: 12 KV, Rated Current:350 mA,O Terminal Diameter: 4.2mm/0.17in, Female Terminal Size:1/4 in/6.3 mm Standard
• Compatible and directly replace for LG 6021W3B001V Whirlpool W10492278 FRIGIDAIRE and Electrolux 5304467670，Heat shrink tubing on female side and keep safe for ever,widely use for microwave
• Ohmmonburged is the listing 's First and Original Builder and Provider, Only he can ensure the quality and service better
• Replace for high voltage diode which marked T3512, 3512,CL01-12, HVM12, 512H,Ohmmonburged is the listing 's First and Original Builder and Provider, Only he can ensure the quality and service
• Due to high voltage it needs skilled or trained service technician to replace it
